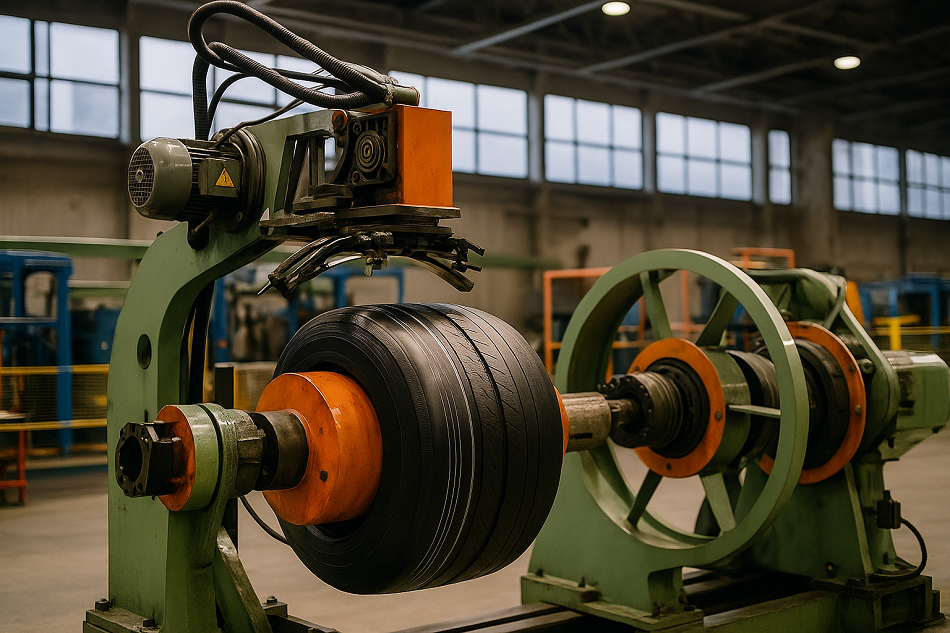

In modern industrial applications, SH Clutch and CB Clutch products have become essential components in ensuring efficient and stable operations. Among these, the SH-12/SY-12CB300 pneumatic brake stands out as a powerful and reliable solution specifically designed for high-load tire building machines and similar heavy-duty equipment.

Overview of SH Drum Clutch Series

Product Name: SH Drum Clutch
Model: SH-10
Weight: 9 kg
Dimensions: 405x405x105 mm
Working Pressure: 0.1 bar – 6 bar
Braking Torque: 10 – 1,000,000 N·m

The SH series double air-tube pneumatic clutch and brake units are engineered for extreme braking and clutching in heavy-duty industrial scenarios. Although not suitable for applications involving high start-up loads and continuous slippage (due to heat buildup), the SH model offers exceptional torque transfer with a compact outer diameter. This makes it ideal for high-speed environments while reducing surface contact speeds and improving heat dissipation via its ventilated structure.

Structural Advantages

The torque in SH series devices is transmitted from the side plate to the friction disc via a torque arm. This design allows torque capacity up to 1,706,629 N·m. Thanks to its elastic neoprene side plates and belt-like drive tubes, the SH Clutch provides flexibility and compensates for minor shaft misalignments, making it perfect for cyclic operations and high-speed transmissions.

Typical Applications

The SH series is highly versatile, functioning both as a clutch and a brake. It is widely used in industries including:

• Tire manufacturing machines

• Oilfield and drilling equipment

• Steel and metal processing

• Forging machinery

• Printing and packaging

• Mining and marine equipment

• Paper and rubber machinery

These clutches are especially suitable for systems requiring repeated start-stop cycles and rapid engagement/disengagement capabilities.

Key Features of SH Clutch and Brake System

• Powerful torque transmission with a compact size

• Efficient heat dissipation with ventilated design

• Dual function: can serve as both clutch and brake

• Flexible installation and excellent shock absorption

• Ideal for heavy-load, high-speed industrial applications

Why Choose SH-12/SY-12CB300?

The SH-12/SY-12CB300 pneumatic clutch and brake system exemplifies cutting-edge performance in torque control and braking technology. Designed for rugged environments and precision control, this system helps ensure safer, more efficient machinery operation in demanding fields like tire manufacturing, metallurgy, and petrochemicals.
