Products Description

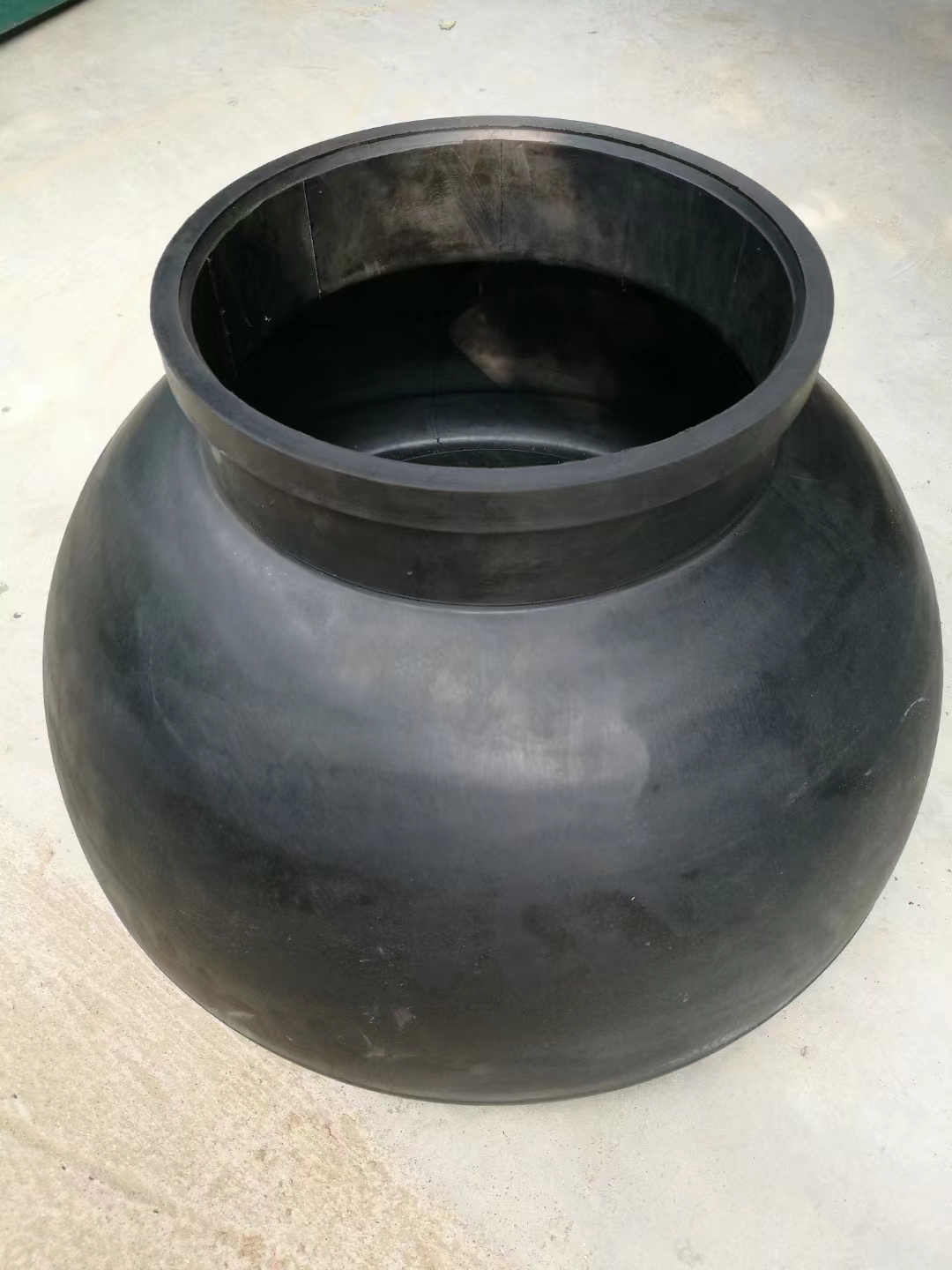

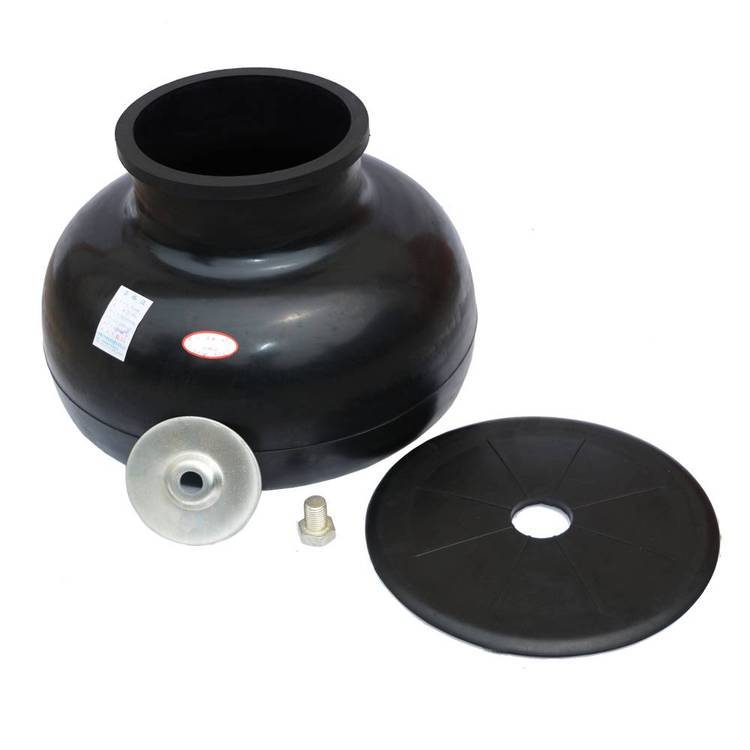

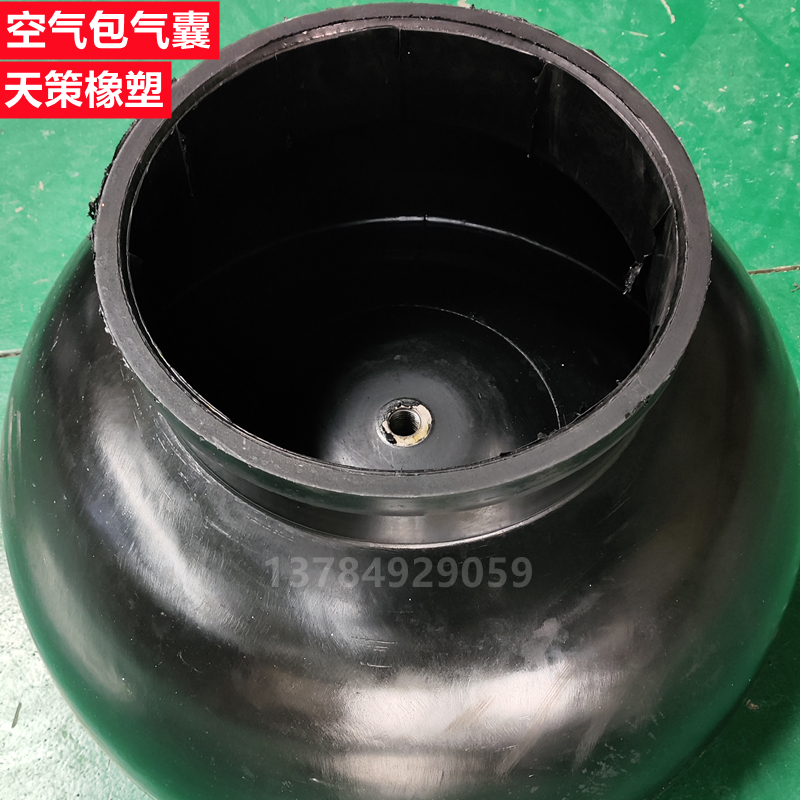

Pulsation Dampener Bladder – Improve Mud Pump Performance and Protect Your System
To reduce pressure fluctuations and flow instability in drilling mud pumps, pulsation dampener bladders are commonly installed on the discharge line. These rubber bladders—also known as mud pump bladders or mud pump air bladders—help stabilize pressure, protect equipment, and improve overall pump efficiency. They are widely used in oilfield drilling, chemical transport, and other high-pressure fluid systems.
✅ Main Functions of Pulsation Dampener Bladders
1. Discharge Line Stability
When installed on the discharge line of a mud pump, the mud pump air bladder balances pressure peaks, reduces energy loss, and ensures safer operation. It helps the pump maintain strong suction performance while minimizing wear.
2. Discharge Shock Absorption
Mounted at the discharge end of pumps or compressors, the pulsation dampener bladder reduces damage caused by pressure spikes. It protects pistons, valves, housings, and piping from fatigue, extending the service life of the equipment.
3. Vibration and Water Hammer Control
Sudden valve closures or system flow changes can cause water hammer effects, damaging pipelines and downstream components. Installing a mud pump bladder acts as a cushion, absorbing shock and preventing rupture or failure.
4. Reverse Pulsation Reduction
When fluid suddenly impacts the pump valve, it may cause reverse pulsation that forces a sudden shutdown. A mud pump air bladder helps absorb these reverse forces and keeps the system running smoothly.
5. Energy Storage Capability
Thanks to advanced internal design, pulsation dampener bladders can also store hydraulic energy. This is useful for supplying emergency lubrication to rotating sprinklers or critical components during power interruptions, preventing costly failures.
⚙️ Available Bladder Materials and Options

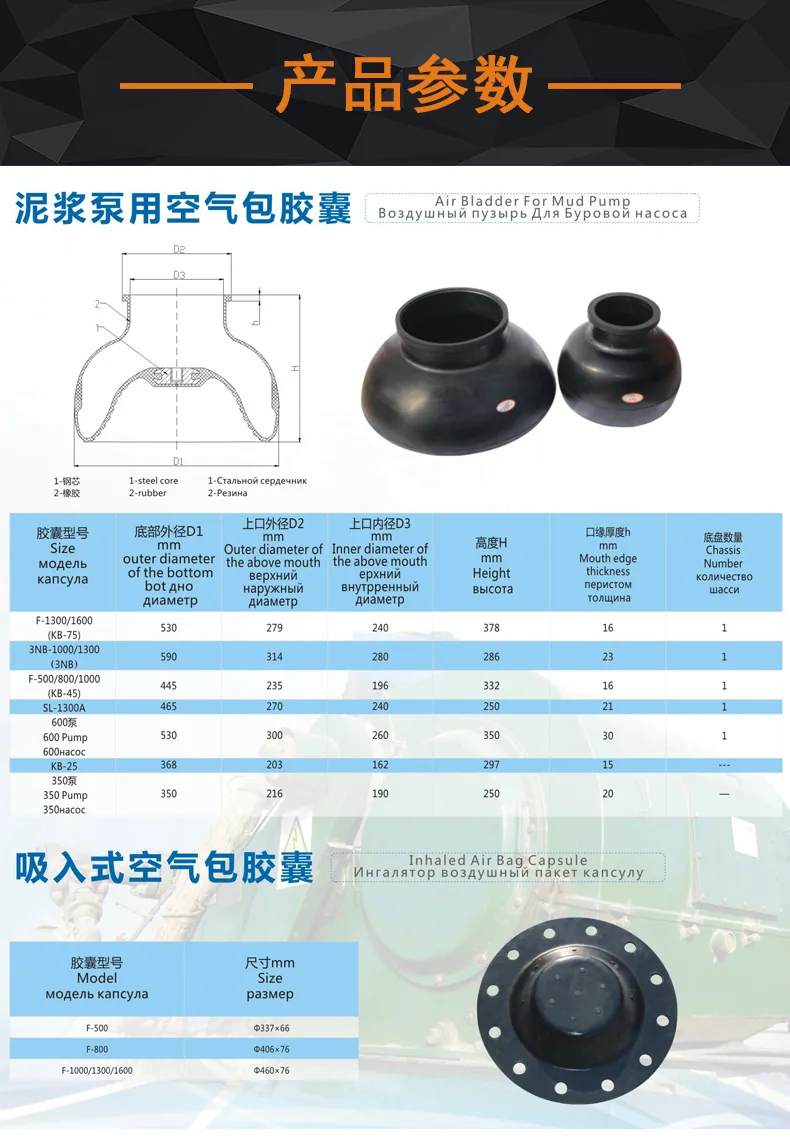

We manufacture pulsation dampener bladders using various high-quality materials to suit different working environments:
| Material Type | Features |
|---|---|
| Natural Rubber | Cost-effective, general-purpose |
| Nitrile Rubber (NBR) | Oil-resistant, commonly used in drilling |
| Hydrogenated NBR (HNBR) | High-temperature, chemical resistance |
| Polyurethane | Excellent wear resistance |
📌 Custom sizes and OEM replacements are available. Bladders can be produced to fit models like Hydril K20/K25, Emsco, BOMCO, and more.
🛠️ Applications
-
Drilling mud pumps
-
Cementing and fracturing units
-
Hydraulic systems
-
Marine and mining fluid lines
📩 Looking for a reliable pulsation dampener bladder supplier? Contact us today for technical support, customized solutions, and global delivery options.
