Products Description

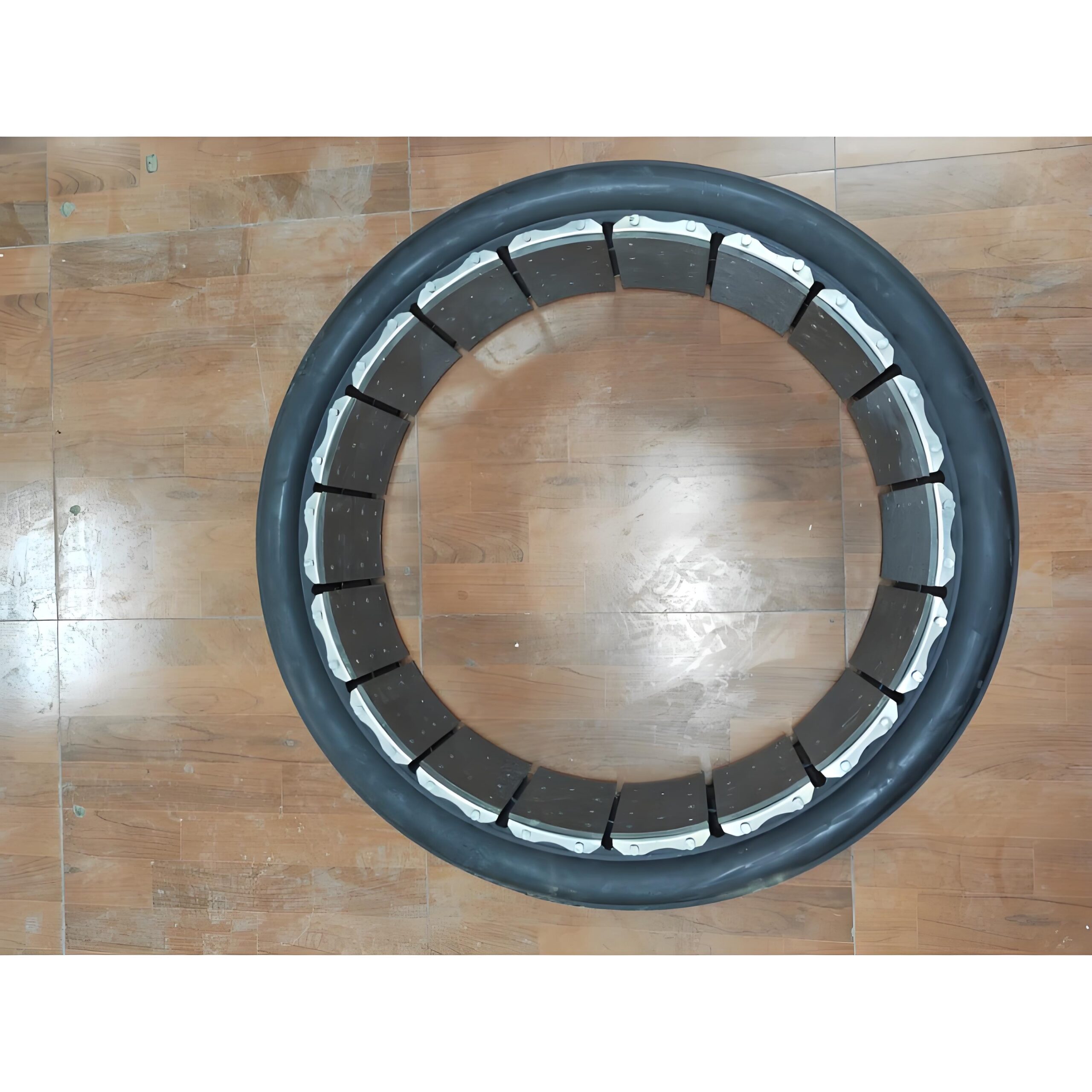

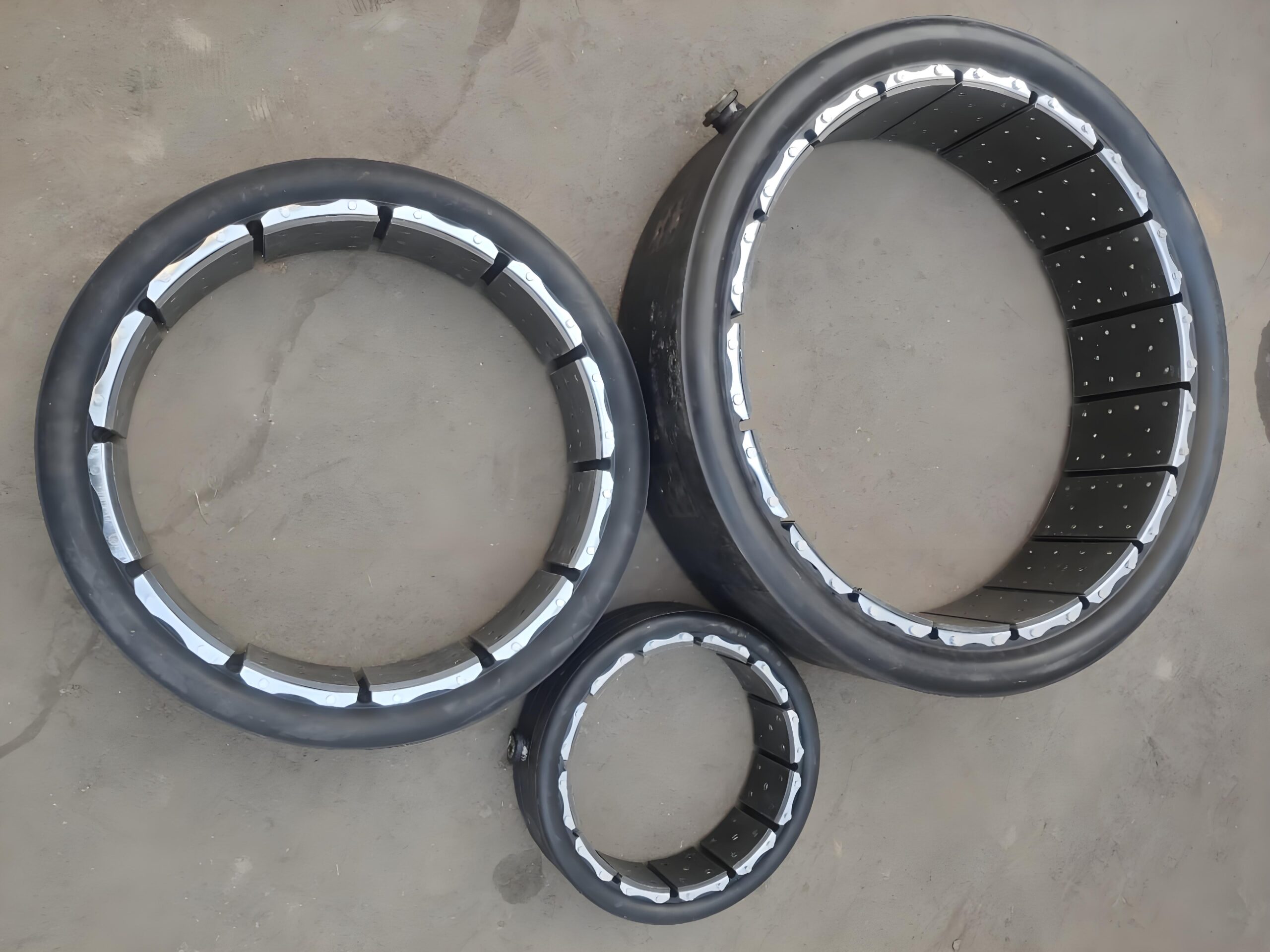

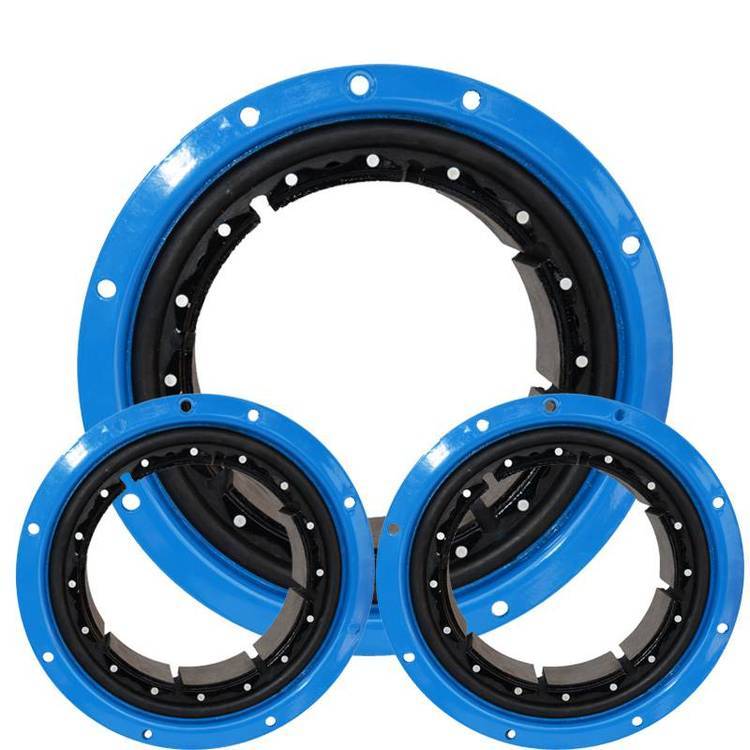

Clutch rubber air tubes are key pneumatic components used in industrial clutch systems. When compressed air enters the tube, it inflates and activates the clutch. These tubes are widely used in drilling rigs, marine equipment, mining machinery, and other heavy-duty applications. They offer reliable pressure transmission and shock absorption, making them essential for smooth power engagement.
1 The air tube clutch is a friction-type clutch that uses compressed air as its actuation power source. It is widely used in equipment requiring high torque transmission and quick response, such as drilling machinery, marine propulsion systems, heavy-duty press machines, excavators, ball mills, and rubber processing machinery.
2 This clutch features high torque capacity, smooth engagement, and simple installation. It also allows for minor angular and radial misalignment compensation between the driving and driven shafts, ensuring reliable operation even under challenging industrial conditions.
|
Size
|
Outer diameter/mm
|
Inner diameter/mm
|
Breadth of section/mm
|
Friction wheel width/mm
|
Nozzle number
|
Nozzle internal thread/mm
|
height/mm
|
Connection plate number
|
|
LT200*75
|
288
|
219
|
90
|
73
|
1
|
M16*1
|
6
|
4
|
|
LT290*100
|
290
|
224
|
93
|
78
|
1
|
M12*1.5
|
15
|
6
|
|
LT290*148
|
290
|
224
|
148
|
133
|
1
|
M20*1.5
|
15
|
6
|
|
LT300*100
|
392
|
315
|
115
|
98
|
1
|
M20*1.5
|
20
|
6
|
|
LT300*150
|
392
|
313
|
150
|
133
|
1
|
M20*1.5
|
20
|
6
|
|
LT400*125
|
517
|
420
|
166
|
125
|
1 or 2
|
M20*1.5
|
20
|
6
|
|
LT500*125
|
645
|
521
|
152
|
123
|
1 or 2
|
M20*1.5
|
20
|
6
|
|
LT600*125
|
750
|
622
|
153
|
123
|
1
|
M20*1.5
|
20
|
6
|
|
LT700*200
|
800
|
723
|
243
|
198
|
2
|
M33*1.5
|
27
|
8
|
|
LT700*135
|
814
|
722
|
164
|
137
|
2
|
M20*1.5
|
20
|
6
|
|
LT800*135
|
915
|
822
|
165
|
137
|
2
|
M20*1.5
|
20
|
8
|
|
LT1070*200
|
1270
|
1093
|
243
|
198
|
2
|
M33*1.5
|
27
|
8
|
|
LT1000*250
|
1040
|
880
|
290
|
246
|
1
|
M33*1.5
|
27
|
12
|
| Linear for Mud Pump Model List | ||||||||||
| Bomco/Emsco | F-1300 | FB-1300 | F-1600 | FB-1600 | F1600HL | F2200HL | F-1000 | F-800 | F-500 | |
| National | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 | ||||
| Gardner Denver | PZ7 | PZ8/9 | PZ10/11 | FK-FXK | FY-FXX | FG-FXG | FF-FXP | KG-KXG | FQ-FXQ | |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||||
| Russian | UNBT-950 | UNB-600 | 8T-650 | UNBT1180L | 3PN1600 | |||||
| Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||||
| Wirth | TPK1000 | TPK1600 | TPK2000 | |||||||
| LS National | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | 3NB800 | 3NB1300A | ||||
| Drillmec | 9T1000 | 12T1600 | ||||||||
| OTHER BRANDS: HONGHUA, QINGZHOU, WIRTH, OPI, ELLIS WILLIAMS, WILSON, GASO, SKYTO, BREWSTER, WETHERFORD | ||||||||||
